Lesson: Lung Module

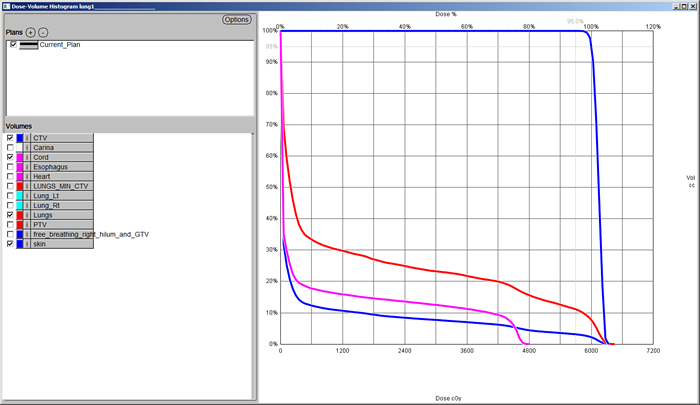

With the totals of both plans in our DVH we can now evaluate the cord and lung totals. The Composite DVH shows that we have met all of the Initial criteria.  (Note: that the individual “Student_Boost_16” did meet the 110% Hot spot criteria).
                                     60 Gy (44 Gy initial, 16 Gy Boost)
                                     95% of CTV Receives 100% of Rx
                                     Nothing receives >110% of Rx dose (if possible)
                                     Cord < 48 Gy
                                     V20 < 32%

Page 25 of 42
